Hawke防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：Hawke防爆格蘭，Hawke防爆葛蘭，Hawke防爆填料函，Hawke防爆密封接頭
Hawke非鎧防爆格蘭，Hawke鎧裝防爆格蘭，Hawke防爆變徑，Hawke防爆呼吸閥堵頭
Hawke 501/423 CABLE GLANDS

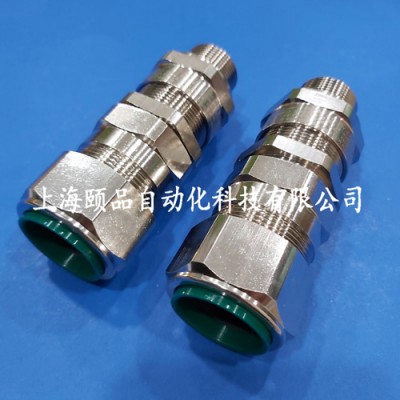

Hawke非鎧雙密封防爆格蘭（501/423系列）
Hawke代理商:上海頤品自動化科技有限公司
Hazardous Area Cable Glands from Hawke
Hawke 501/423 cable glands provide two independent seals on non-armoured elastomer and plastic insulated cables – the first of which is a flameproof seal on the inner or outer cable sheath, with an additional IP seal on the outer sheath.
Hawke 501/423 cable glands are dual certified Exd and Exe and suitable for installation in Zone 1 (21) and Zone 2 (22) hazardous areas, 3.2-91.6mm outside cable diameters.
When used in increased safety applications the Hawke cable gland can be used to terminate braided cables where the braid and the cable outer sheath enter into the electrical enclosure or junction box.
♦ Exdb IIC Gb, Exeb IIC Gb, Extb IIIC, Db Non-Aromoured Cables ATEX & IECEx Cable Gland
Hawke 501/423 cable gland is suitable for cable termination and installation in Zone 1 (21), Zone 2 (22) and Division 2 hazardous areas
Flameproof Exdb
Increased Safety Exeb
Dust Extb
Dual Certified Cable Gland For Hazardous Areas ATEX – IECEx
Hazardous Area Cable Gland Classification – Exdb IIC Gb, Exed IIC Gb, Extb IIIC Db
Certificate No’s – baseefa06ATEX0056X and IECEx BAS 06.0013X
Cable Gland Zone Location – Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC
Construction and Test Standards – IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
Ingress Protection – IP66, IP67 and IP 68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
Deluge Protection – DTS01
Operating Temperature Range -60°C to +100°C
| HAWKE 501/423 CABLE GLAND SELECTION TABLE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hawke Size Ref. | Entry Thread Size | Thread Length ‘H’ | Cable Acceptance Details | ‘G’ Compressed Length | Hexagon Dimensions | ||||||
| Outer Sheath ‘B’ | |||||||||||
| Metric | NPT * | Standard Seal | Alternative (S) Seal | Across Flats | Across Corners | ||||||
| Standard | Option | Min. | Max. | Min. | Max. | ||||||
| Os | M20 ‡ | ½” | – | 15.0 | 3.2 | 8.0 | – | – | 40.0 | 24.0 | 26.5 |
| O | M20 ‡ | ½” | – | 15.0 | 6.5 | 11.9 | – | – | 40.0 | 24.0 | 26.5 |
| A | M20 | ¾” | ½” | 15.0 | 10.0 | 14.3 | 9.0 | 13.5 | 40.4 | 30.0 | 32.5 |
| B | M25 | 1″ | ¾” | 15.0 | 13.0 | 20.2 | 9.5 | 15.4 | 44.3 | 36.0 | 39.5 |
| C | M32 | 1¼” | 1″ | 15.0 | 19.5 | 26.5 | 15.5 | 21.2 | 47.2 | 46.0 | 50.5 |
| C2 | M40 | 1½” | 1¼” | 15.0 | 25.0 | 32.5 | 22.0 | 28.0 | 49.5 | 55.0 | 60.6 |
| D | M50 | 2″ | 1½” | 15.0 | 31.5 | 44.4/42.3 † | 27.5 | 34.8 | 72.5 | 65.0 | 70.8 |
| E | M63 | 2½” | 2″ | 15.0 | 42.5 | 56.3/54.3 † | 39.0 | 46.5 | 64.8 | 80.0 | 88.0 |
| F | M75 | 3″ | 2½” | 15.0 | 54.5 | 68.2/65.3 † | 49.5 | 58.3 | 68.0 | 95.0 | 104.0 |
| G | M80 | 3½” | – | 20.0 | 67.0 | 73.0 | – | – | 68.0 | 106.4 | 115.0 |
| H | M90 | 3½” | – | 20.0 | 67.0 | 77.6 | – | – | 68.0 | 115.0 | 130.0 |
| J | M100 | 4″ | – | 20.0 | 75.0 | 91.6 | – | – | 68.0 | 127.0 | 142.0 |
All dimensions in millimetres (except * where dimensions are in inches).
Os – F size metric entry threads are 1.5mm pitch as standard. For G size Cable Glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specify when ordering.
† Smaller value is applicable when selecting reduced NPT entry option.
‡ Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9 mm.
Hawke防爆格蘭（Hawke Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
Hawke防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：Hawke防爆格蘭，Hawke防爆變徑，Hawke防爆堵頭，Hawke防爆呼吸閥，Hawke防爆接線盒，Hawke防爆控制箱
Hawke防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
