HAWKE代理商：上海頤品自動化科技有限公司
Hawke防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：Hawke防爆格蘭，Hawke防爆葛蘭，Hawke防爆填料函，Hawke防爆密封接頭
Hawke?非鎧防爆格蘭，Hawke鎧裝防爆格蘭，Hawke防爆變徑，Hawke防爆呼吸閥堵頭
Hazardous Area Cable Glands from Hawke

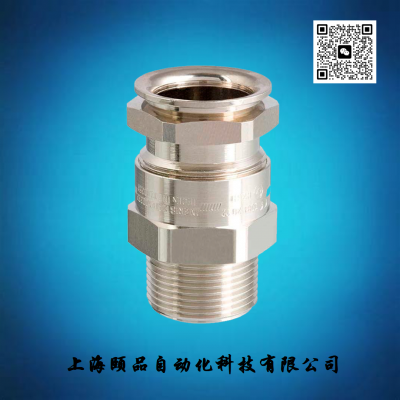

Hawke防爆格蘭（Hawke 501/421 cable glands ）
Hawke 501/421 cable glands 適配非鎧裝電纜，
Hawke代理商：上海頤品自動化科技有限公司
Hawke 501/421 cable glands provide a reliable outer cable sheath seal specified to gland and terminate non-armoured elastomer and plastic insulated cables.
Hawke 501/421 cable glands are dual certified Exd and Exe and suitable for installation in Zone 1 (21) and Zone 2 (22) hazardous areas, 3.2-91.6mm outside cable diameters.
When used in increased safety applications the Hawke cable gland can be used to terminate braided cables where the braid and the cable outer sheath enter into the electrical enclosure or junction box.
♦ Exdb IIC Gb, Exeb IIC Gb, Extb IIIC, Db Non-Aromoured Cables ATEX & IECEx Cable Gland
Hawke 501/421 cable gland is suitable for cable termination and installation in Zone 1 (21), Zone 2 (22) and Division 2 hazardous areas.
Flameproof Exdb
Increased Safety Exeb
Dust Extb
Dual Certified Cable Gland For Hazardous Areas ATEX – IECEx
Hazardous Area Cable Gland Classification – Exdb IIC Gb, Exed IIC Gb, Extb IIIC Db
Certificate No’s – baseefa06ATEX0056X and IECEx BAS 06.0013X
Cable Gland Zone Location – Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC
Construction and Test Standards – IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
Ingress Protection – IP66, IP67 and IP 68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
Deluge Protection – DTS01
Operating Temperature Range -60°C to +100°C
| HAWKE 501/421 CABLE GLAND SELECTION TABLE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hawke Size Ref. | Entry Thread Size | Thread Length ‘H’ | Cable Acceptance Details | ‘G’ Compressed Length | Hexagon Dimensions | ||||||
| Outer Sheath ‘B’ | |||||||||||
| Metric | NPT * | Standard Seal | Alternative (S) Seal | Across Flats | Across Corners | ||||||
| Standard | Option | Min. | Max. | Min. | Max. | ||||||
| 2K | M16 | – | – | 15.0 | 3.2 | 8.0 | – | – | 23.5 | 19.0 | 21.2 |
| Os | M20 ‡ | ½” | – | 15.0 | 3.2 | 8.0 | – | – | 23.8 | 24.0 | 26.5 |
| O | M20 ‡ | ½” | – | 15.0 | 6.5 | 11.9 | – | – | 23.8 | 24.0 | 26.5 |
| A | M20 | ¾” | ½” | 15.0 | 10.0 | 14.3 | 9.0 | 13.4 | 24.8 | 30.0 | 32.5 |
| B | M25 | 1″ | ¾” | 15.0 | 13.0 | 20.2 | 9.5 | 15.4 | 25.8 | 36.0 | 39.5 |
| C | M32 | 1¼” | 1″ | 15.0 | 19.5 | 26.5 | 15.5 | 21.2 | 28.2 | 46.0 | 50.5 |
| C2 | M40 | 1½” | 1¼” | 15.0 | 25.0 | 32.5 | 22.0 | 28.0 | 29.5 | 55.0 | 60.6 |
| D | M50 | 2″ | 1½” | 15.0 | 31.5 | 44.4/42.3 † | 27.5 | 34.8 | 40.4 | 65.0 | 70.8 |
| E | M63 | 2½” | 2″ | 15.0 | 42.5 | 56.3/54.3 † | 39.0 | 46.5 | 38.2 | 80.0 | 88.0 |
| F | M75 | 3″ | 2½” | 15.0 | 54.5 | 68.2/65.3 † | 49.5 | 58.3 | 40.5 | 95.0 | 104.0 |
| G | M80 | 3½” | – | 20.0 | 67.0 | 73.0 | – | – | 41.0 | 106.4 | 115.0 |
| H | M90 | 3½” | – | 20.0 | 67.0 | 77.6 | – | – | 41.0 | 115.0 | 130.0 |
| J | M100 | 4″ | – | 20.0 | 75.0 | 91.6 | – | – | 41.0 | 127.0 | 142.0 |
All dimensions in millimetres (except*).
Os – F size metric entry threads are 1.5mm pitch as standard. For G size Cable Glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specify when ordering.
† Smaller value is applicable when selecting reduced NPT entry option.
Sizes Os and O are available with an M16 thread size. For O size with an M16 thread, the maximum cable inner sheath diameter is 10.9mm.
Hawke 501/421 cable glands are manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium. Brass NPT entries are nickel plated as standard.
Allow sufficient length of cable, measurement II, to suit the electrical equipment. If required, install cable gland shroud. Pass cable through the cable gland as shown. If the equipment has a threaded entry, Hawke recommend screwing the cable gland into the equipment to prevent cable twisting after Step B.
Unless already screwed into the electrical equipment, hold the entry (2) in position with a cable gland spanner/wrench to prevent cable rotation and tighten the backnut (1) until resistance is felt between the cable and seal. Then proceed to turn the back nut through a further half to one full turn to complete the inner seal. Locate the shroud over the cable gland where required. To ease wiring inside the equipment strip the cable outer sheath of the cable as shown.
Click Hawke Cable Glands to view the complete range of hazardous area glands certified according to ATEX & IECEx for Zone 1 / Zone 2.
Flameproof Exdb and Increased Safety Exeb (Dust Extb) Dual Certified glands from Hawke include – for further information review the product pages or contact us to discuss your cable gland requirements.
501/421 Cable Gland Unarmoured – outer cable sheath cable sealing
501/423 Cable Gland Unarmoured – flameproof seal to inner/outer cable sheath with IP seal on the outer sheath
501/453 Universal Cable Gland Wire Armoured Baided Steel Tape Armoured – indoor/outdoor hazardous areas
ICG 623 Barrier Gland Unarmoured – Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC hazardous areas
ICG 653 Barrier Gland Armoured – Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC hazardous areas
Hawke防爆格蘭（Hawke Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
Hawke防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：Hawke防爆格蘭，Hawke防爆變徑，Hawke防爆堵頭，
Hawke防爆呼吸閥，Hawke防爆接線盒，Hawke防爆控制箱
Hawke防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
