CMP非鎧雙密封防爆格蘭密封接頭（SS2K系列）
CMP非鎧雙密封防爆格蘭密封接頭（SS2K系列）
英國CMP非鎧雙密封防爆格蘭SS2K系列(CMP SS2K cable gland)
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
SS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables
Double Seal, Globally Approved, Explosive Atmosphere Cable Gland
Provides double seal on outer sheath or single on outer & inner
Direct & remote installation
Superior levels of cable retention
Displacement type flameproof seals
Deluge protected
-60°C to +130°C (standard), -20°C to 200°C (ThermEx option SS2KHT)
Ex e only version available
Globally marked, IECEx, ATEX & CSA

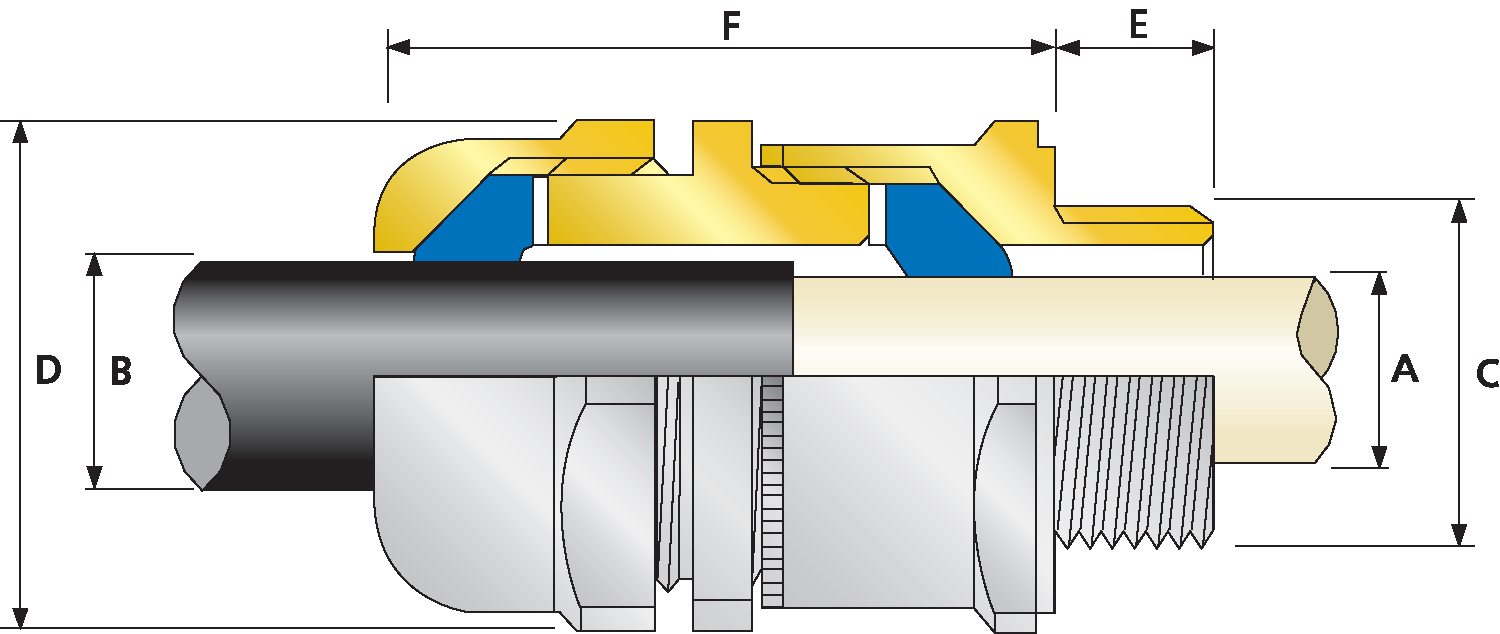

PRODUCT SELECTION TABLE
| Cable Gland Size | Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter ＇A＇ |
Overall Cable Diameter ＇B＇ |
Across Flats ＇D＇ |
Across Corners ＇D＇ |
Protrusion Length ＇F＇ |
Combined Ordering Reference (*Brass Metric) |
Shroud | Cable Gland Weight (Kgs) |
||||||||
| Standard | Option | ||||||||||||||||
| Metric | Thread Length (Metric) ＇E＇ | NPT | Thread Length (NPT) ＇E＇ |
NPT | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 15.0 | ½＇ | 19.9 | ¾" | 3.2 | 8.6 | 3.2 | 8.6 | 24.0 | 26.4 | 49.0 | 20S16 | SS2K | 1RA | PVC04 | 0.14 |
| 20S | M20 | 15.0 | ½＇ | 19.9 | ¾" | 6.1 | 11.7 | 6.1 | 11.7 | 24.0 | 26.4 | 49.0 | 20S | SS2K | 1RA | PVC04 | 0.13 |
| 20 | M20 | 15.0 | ½＇ | 19.9 | ¾" | 6.5 | 14.0 | 6.5 | 14.0 | 27.0 | 29.7 | 54.0 | 20 | SS2K | 1RA | PVC05 | 0.16 |
| 25 | M25 | 15.0 | ¾＇ | 20.2 | 1" | 11.1 | 20.0 | 11.1 | 20.0 | 36.0 | 39.6 | 66.0 | 25 | SS2K | 1RA | PVC09 | 0.30 |
| 32 | M32 | 15.0 | 1＇ | 25.0 | 1 ¼" | 17.0 | 26.3 | 17.0 | 26.3 | 41.0 | 45.1 | 67.0 | 32 | SS2K | 1RA | PVC10 | 0.35 |
| 40 | M40 | 15.0 | 1 ¼＇ | 25.6 | 1 ½" | 23.5 | 32.1 | 23.5 | 32.1 | 50.0 | 55.0 | 70.0 | 40 | SS2K | 1RA | PVC13 | 0.50 |
| 50S | M50 | 15.0 | 1 ½＇ | 26.1 | 2" | 31.0 | 38.2 | 31.0 | 38.2 | 55.0 | 60.5 | 65.0 | 50S | SS2K | 1RA | PVC15 | 0.56 |
| 50 | M50 | 15.0 | 2＇ | 26.9 | 2 ½" | 35.6 | 44.0 | 35.6 | 44.0 | 60.0 | 66.0 | 70.0 | 50 | SS2K | 1RA | PVC18 | 0.59 |
| 63S | M63 | 15.0 | 2＇ | 26.9 | 2 ½" | 41.5 | 49.9 | 41.5 | 49.9 | 70.5 | 77.6 | 70.0 | 63S | SS2K | 1RA | PVC21 | 0.89 |
| 63 | M63 | 15.0 | 2 ½＇ | 39.9 | 3" | 47.2 | 55.9 | 47.2 | 55.9 | 75.0 | 82.5 | 71.0 | 63 | SS2K | 1RA | PVC23 | 0.85 |
| 75S | M75 | 15.0 | 2 ½＇ | 39.9 | 3" | 54.0 | 61.9 | 54.0 | 61.9 | 80.0 | 88.0 | 70.0 | 75S | SS2K | 1RA | PVC25 | 1.02 |
| 75 | M75 | 15.0 | 3＇ | 41.5 | 3 ½" | 61.1 | 67.9 | 61.1 | 67.9 | 84.0 | 92.4 | 75.0 | 75 | SS2K | 1RA | PVC26 | 0.99 |
| 90 | M90 | 24.0 | 3 ½＇ | 42.8 | 4" | 66.6 | 79.4 | 66.6 | 79.4 | 108.0 | 118.8 | 113.0 | 90 | SS2K | 1RA | PVC31 | 2.99 |
| 100 | M100 | 24.0 | 3 ½＇ | 42.8 | 4" | 76.0 | 90.9 | 76.0 | 90.9 | 123.0 | 134.2 | 106.0 | 100 | SS2K | 1RA | LSF33 | 3.39 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 86.0 | 97.9 | 133.4 | 146.7 | 128.0 | 115 | SS2K | 1RA | LSF34 | 5.32 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 97.0 | 114.9 | 152.4 | 167.6 | 129.0 | 130 | SS2K | 1RA | LSF35 | 6.35 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
